How to Read and Understand a Solar Generator’s Spec Sheet
I look at continuous watts to see the maximum steady output, compare it with surge watts for short‑term motor starts, and make sure the summed running loads stay below the continuous rating while the highest inrush load plus the running total stays under the surge limit; I convert battery capacity from amp‑hours at 12 V to watt‑hours, then divide by device watts, adjusting for inverter efficiency (≈85‑90 %) and temperature derating (≈10‑15 % loss) to estimate runtime; I check AC, DC, and USB port ratings, verify pure‑sine inverter distortion ≤3 % and EMI attenuation ≥30 dB for sensitive electronics, and confirm solar input limits (e.g., 500 W MPPT at 95 % efficiency) and voltage/current caps; I then match these figures to typical 2,500 W home backup or 3,000 W off‑grid worksite loads, and if you continue you’ll discover deeper details.
Key Takeaways
- Identify continuous (rated) watts vs. surge (peak) watts; ensure running loads stay below continuous rating and total startup surges stay below peak rating.
- Check battery capacity in watt‑hours (Wh) and convert amp‑hours (Ah) using nominal voltage; account for ~10‑15 % usable loss due to inverter efficiency and temperature.
- Verify inverter type and harmonic distortion; pure‑sine wave with ≤3 % THD is required for sensitive electronics.
- Review port specifications (AC, DC, USB‑C) and their individual limits; sum expected device draws to stay within overall continuous output.
- Examine solar input rating and MPPT efficiency; confirm PV voltage/current limits and factor in conversion losses for realistic charging performance.
Identify Continuous vs. Surge Watts on the Generator Spec Sheet
When you open the spec sheet, you’ll first notice two distinct power ratings labeled “Continuous (or Rated) Watts” and “Surge (or Peak) Watts,” which respectively indicate the maximum steady‑state output the generator can sustain without overheating and the short‑duration power it can deliver to accommodate motor start‑up spikes; the continuous rating, often expressed as 1,200 W, reflects the thermal limits of the inverter and battery chemistry, while the surge rating, perhaps 2,400 W, accounts for transient startup behavior of inductive loads such as compressors or fans. I compare each device’s running wattage to the continuous figure, ensuring the sum stays below that threshold, and I add the highest starting wattage to the total running load to verify the surge capacity exceeds the calculated peak demand, thereby preventing thermal overload and ensuring reliable operation under brief load excursions.
Recommended Products
Handles Even the Big Appliances: Run major home appliances with 7200W of rated power (14,400W surge). Supports both 120V and 240V for powerful more devices, even a 5-ton AC for comfortable indoor temperatures or a water heater for a hot shower.
The F3800 Plus Power Station, PS400W Solar Panel, and BP3800 Expansion Battery will be dispatched separately. If you receive one item before the others, please await the arrival of the remaining items.
Essential Home Backup: The Jackery HomePower 3600 Plus delivers 3600W output (7200W in parallel) to run pumps, heaters, and dryers with ease. With dual voltage (120V & 240V in parallel) and 3584Wh capacity expandable to 21kWh per unit or 43kWh with multiple units, it can power a 3-person household for over 2 weeks.
Decode Battery Capacity and Runtime From Watt‑Hours and Amp‑Hours
Understanding battery capacity starts with interpreting watt‑hours (Wh) and amp‑hours (Ah), because Wh quantifies stored energy while Ah reflects charge quantity at a given voltage, and converting between them requires multiplying Ah by the nominal battery voltage—typically 12 V for portable solar generators, yielding, for example, a 100 Ah pack that equals 1,200 Wh (100 Ah × 12 V). I then compare the spec sheet’s Wh rating to my expected load, dividing Wh by device watts to estimate runtime, while noting that discharge profile influences actual duration, especially when battery chemistry such as LiFePO₄ or lithium‑ion dictates voltage sag under load; storage temp must stay within manufacturer limits to preserve capacity, and battery balancing circuits make certain each cell contributes evenly, preventing premature degradation.
Recommended Products
Perfect kit for having an off-grid 12 volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, back-up and remote power use

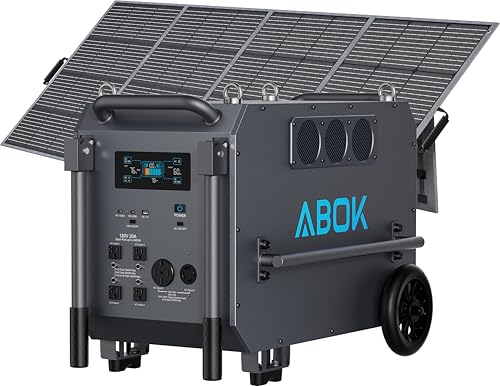

Dual 120V/240V Output for Home and Outdoor Use: Power up everything you need with the ABOK 7200 portable power station. Featuring dual-voltage AC output (120V and 240V), this solar generator supports both home appliances and high-power tools. Its 7200W pure sine wave output ensures stable electricity for construction sites, RV travel, home backup, or off-grid living-reliable, versatile, and built for all power scenarios
[Energize Almost Everything] The EcoFlow DELTA Pro 3 supports 120V/240V voltage and has a 4000W output (6000W with X-Boost, scalable up to 12000W), powering nearly all essential home appliances, such as a 3-ton* central AC or a 1 HP water pump.
Match Device Loads to the Generator’s Continuous and Peak Limits
If your solar generator lists a continuous rating of 2,000 W and a peak rating of 2,500 W, you must make sure the total running wattage of all devices you plan to connect does not exceed 2,000 W, while the highest surge wattage among those devices, added to the summed running wattage, must stay below 2,500 W; this requires calculating each appliance’s steady‑state draw, typically found on the label, and its startup surge, often indicated as “inrush” or “peak” power, then summing the steady‑state values for the continuous limit and adding the largest surge value to that sum for the peak limit, thereby guaranteeing the generator can supply power without triggering overload protection or voltage sag. I then perform load balancing by arranging devices so that high‑draw appliances operate sequentially, not simultaneously, and I employ appliance sequencing, turning on a refrigerator after the microwave stops, ensuring the combined surge never exceeds the peak rating while the continuous load remains within the 2,000 W threshold.
Recommended Products
[All-Scenario Power] - Apex 300 (2764.8Wh, 3840W) keeps homes lit, RVs rolling & off-grid sites running. Parallel 2-3 units (5.5-8.3kWh), expand to 58kWh with B300K. Never powerless.
[Storm-Ready Power] - Apex 300 & 2 B300K (8.3kWh, 3840W, 7680W surge) runs homes, RVs for 2-4 days during outages. Powers fridges, medical gear, and essentials through any storm.
[Energy Independence] - Apex 300 power station, B300K expansion battery (5.5kWh, 3840W, 7680W surge) delivers off-grid power for essentials, lights, and devices. Ideal for cabins, camping, and backup.
Read the Generator’s AC, DC & USB Port Ratings
Examine the AC, DC, and USB port ratings by noting each outlet’s voltage, amperage, and maximum wattage, because the 120 V AC socket rated at 2,000 W continuous and 2,500 W peak, the 12 V DC car‑cable port delivering up to 10 A (120 W), and the USB‑C port supporting 5 V/3 A (15 W) and PD 20 V/3 A (60 W) together define the total power distribution capabilities, which must be matched to device requirements, while the presence of multiple AC outlets—each limited to 1,500 W continuous—allows simultaneous operation of lower‑draw appliances, provided the combined load never exceeds the generator’s overall continuous rating, and the DC output’s higher current capacity, often expressed as 30 Ah at 12 V (360 Wh), supports longer runtimes for 12 V accessories, whereas the USB ports’ varying output profiles necessitate checking individual device specifications to avoid undervoltage or overcurrent conditions. I follow port etiquette by assigning each device to the appropriate outlet, and I practice cable management by routing cords to prevent overload, ensuring that amperage limits are respected and that the generator operates within its rated specifications.
Recommended Products
[All-Scenario Power] - Apex 300 (2764.8Wh, 3840W) keeps homes lit, RVs rolling & off-grid sites running. Parallel 2-3 units (5.5-8.3kWh), expand to 58kWh with B300K. Never powerless.
【Massive 2016Wh Capacity + 10-Year Battery Lifespan】The PowerMax3600PE packs a high 2016Wh of energy, so you'll have plenty of power for all your devices in any situation. It's built with robust EV-grade Lithium Iron Phosphate (LiFePO₄) batteries that deliver over 4,000 cycles and last up to 10 years—giving you long-term reliability you can count on
[6000W 120/240V Solar Generator] OSCAL solar powered generator has a capacity of 3600Wh and provides 4*AC output, 6000W(Surge 9000W), Suports DC/AC Bi-Directional Inverter 120V/240V Dual Voltage Output,ensuring that any appliance can find its match with this device. In the case of an unplanned outage, all the charging outlet demands of the family will be satisfied with its 14 outlet sources. Whether camping, working outdoors, or facing an emergency, this solar generator can provide stable power.
Will the Inverter Handle Sensitive Electronics? (Pure‑Sine vs. Modified)
Typically, a solar generator’s inverter must deliver a true pure‑sine waveform, which replicates utility power by maintaining voltage within ±5 % and harmonic distortion below 5 %, to protect sensitive electronics such as laptops, medical devices, and audio equipment. I examine power quality by checking the inverter topology; a pure‑sine design, often a full‑bridge or H‑bridge circuit, yields low waveform distortion, whereas modified sinewave units, typically using a chopping or PWM method, introduce higher THD, potentially exceeding 10 % and jeopardizing delicate circuitry. I also verify EMI shielding specifications, because adequate shielding reduces electromagnetic interference that can corrupt data signals in medical monitors or audio gear. When the spec sheet lists a total harmonic distortion of ≤3 % and EMI attenuation of ≥30 dB, I conclude the inverter will reliably handle sensitive loads.
Solar‑Charging Specs on the Generator Spec Sheet
The inverter’s pure‑sine output, which we confirmed meets a ≤3 % THD and ≥30 dB EMI attenuation, directly influences the solar‑charging subsystem, because the same power electronics control both AC delivery and the charge controller that regulates photovoltaic input. I examine the solar input rating, typically expressed in watts, noting that a 500 W solar input allows two 250 W panels to operate at peak efficiency, while a 1,200 W rating accommodates larger arrays without throttling. The MPPT charging efficiency, often listed as 95 % or higher, indicates how effectively the controller converts variable panel voltage into usable battery charge, and I compare it to PWM alternatives, which usually lag by 10–15 %. I also verify the maximum voltage and current limits, ensuring that panel strings stay within the 60 V and 10 A specifications, respectively, to prevent over‑voltage protection activation.
Efficiency and Real‑World Capacity Loss on a Generator Spec Sheet
When reviewing a generator’s spec sheet, I note that the advertised watt‑hour (Wh) rating often exceeds the usable capacity because conversion losses, temperature derating, and battery aging reduce the effective energy by roughly 10‑15 %. I calculate real‑world capacity by subtracting inverter efficiency losses, typically 85‑90 % for pure‑sine wave units, and then applying a temperature correction factor of 0.9 per 10 °C above 25 °C, which reflects temperature effects on chemical kinetics and internal resistance. Battery aging, quantified as a 5‑10 % capacity decline after 500 cycles for Li‑ion and up to 20 % for lead‑acid, further lowers available Wh. Consequently, a unit rated at 1,000 Wh often delivers 750‑850 Wh under moderate climate and mid‑life battery conditions, a figure that should guide runtime expectations for sustained loads.
Size a Generator for Common Scenarios: Camping, RV, Home Backup, Off‑Grid Worksite
Real‑world capacity, which we just saw can drop 10‑15 % from the nominal watt‑hour rating, directly informs how I size a portable solar generator for distinct use cases, because the usable energy must exceed the summed running watts of all devices plus a safety margin for surge loads. For camping, I target 400 W continuous and 800 Wh, supporting lights, a mini‑fridge, and a phone charger, while ensuring quiet operation and a weight under 15 lb for transport considerations; an RV typically requires 1,500 W continuous and 2,000 Wh to run a microwave, water pump, and air‑conditioner starter, demanding a larger battery and reinforced handles for moving the unit; home backup calls for 2,500 W continuous and 3,500 Wh, covering essential appliances and a UPS, with a chassis designed for rolling on carpeted floors; an off‑grid worksite needs 3,000 W continuous and 5,000 Wh, powering power tools and lighting, necessitating a rugged frame, reinforced wheels, and vibration‑dampening mounts to maintain quiet operation during prolonged use.
Recommended Products
[120V/240V 6000W Solar Generator] OSCAL solar powered generator has a capacity of 3600Wh and provides 4*AC output, 6000W(Surge 9000W), Suports DC/AC Bi-Directional Inverter 120V/240V Dual Voltage Output,ensuring that any appliance can find its match with this device. In the case of an unplanned outage, all the charging outlet demands of the family will be satisfied with its 14 outlet sources. Whether camping, working outdoors, or facing an emergency, this solar generator can provide stable power.
Essential Home Backup: With a robust 3600W output (7200W surge) and a 3072Wh capacity, the Jackery HomePower 3000 provides reliable backup power for home essentials - fridge, fan, WiFi router, lights, etc. It effortlessly powers a household for up to 15 hours and keeps a refrigerator running for 1 to 2 days, ensuring you're always prepared when outages strike.
Ultra-powerful Capacity. DELTA Pro has a large 3600Wh battery capacity with 3600W AC output and total 15 outlets, which make it a strong home backup. With x-boost technology, it can power domestic appliances up to 4500W. Full charged in 1.8 hrs with 240V outlets(3000W), 2.7 hrs with 1800W wall outlets. Remember that the solar generator and the solar panel(s) will be shipped in separate packages.
Frequently Asked Questions
Does the Spec Sheet List Total Harmonic Distortion (THD) for the AC Output?
I don’t usually see total harmonic distortion listed; most spec sheets skip it, focusing on power ratings. If you need waveform clarity, ask the manufacturer directly for the THD value.
How Does Ambient Temperature Affect the Generator’s Continuous Power Rating?
I tell you that higher ambient temperature triggers temperature derating, so the generator’s continuous power drops; you must meet cooling requirements—like adequate ventilation or fans—to maintain the rated output.
Are the USB Ports Capable of Fast‑Charging (PD) or Only Standard 5 V?
I’ll tell you straight: the USB ports support PD, not just plain 5 V. They follow fast‑charging protocols, delivering higher voltages and currents for quick power‑up, so your devices charge in a flash.
What Is the Warranty Period for the Battery Cells Versus the Inverter?
I’m typically seeing five‑year battery lifespan warranties and three‑year inverter durability coverage, though some brands stretch the battery guarantee to ten years while keeping the inverter at two to three years.
Can the Generator Be Chained With Another Unit for Increased Capacity?
I can chain units for parallel operation, but you’ll need a controller that supports load balancing; otherwise the generators won’t share power evenly and could overload one battery or inverter.
